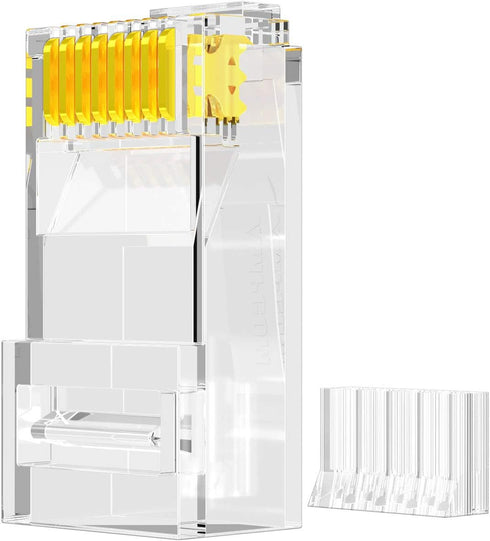

AMPCOM RJ45 Connectors, Standard Modular Plugs, UTP Gold-Plated 2 Pieces Suit CAT6 RJ45 8P8C Crimp End for Ethernet Cable, Support POE/POE+ / POE+...

Some tips on use: strip back 1.5" of jacket and remove pull string order wires by T568B color code cut ends of wires just to make them equal length, leaving lots of excess The wire guide has a side with solid plastic and a grooved side for puncturing the contacts through. Orientate so the smooth surface is away from you when the orange wires (pin 1) are to your left and cable dangles down/toward you.. slide guide over wires as far down as you can cut wires flush with end of guide insert the guide and CAT5/6 UTP into the plug as far as it will go. The plastic guide will be under the contacts when inserted. If it does not go in, the guide might be backwards. Crimp the connector Test your cable.

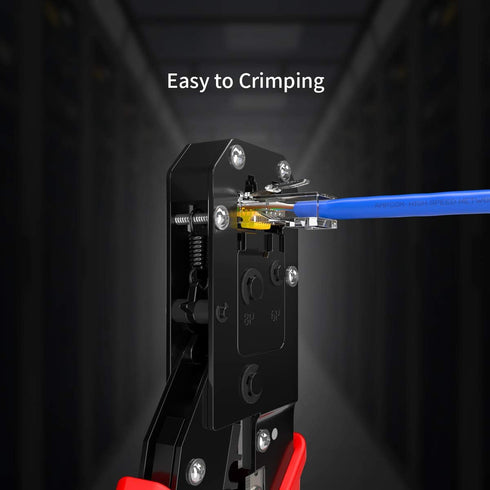

Buen producto, requiere algo de practica. Sugiero utilizar una buena herremienta de crimpado, de lo contrario el contacto no se har correctamente. Sucede que por la guia el conector parece tener dimensiones diferentes a los conectores tradicionales, pero cabe correctamente en el jack. Agrego la foto de la crimpeadora que uso y me funciona. Intent con una barata y el metal no hacia buen contacto.

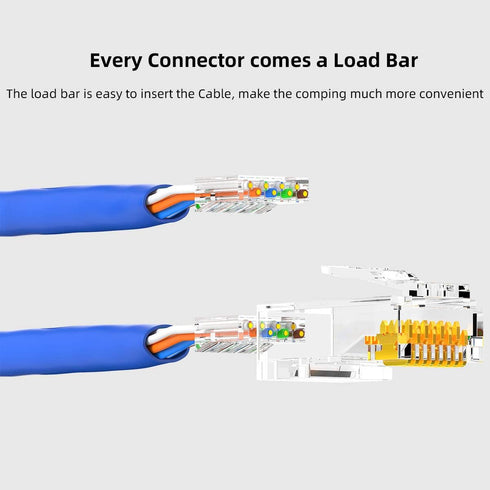

I've terminated 30 of these guys. They are challenging to use, but you need to understand why you would use these over a simple pass through crimp RJ45 connector. The use of the load bar allows you to maintain you twisted pairs as far as possible. This helps preserve your signal integrity. Does the 0.5in within the connector really matter that much? No, it really doesn't, but some people are purists and if you're trying for 10G which you can get over short runs with CAT6, maybe it matters a little. It might matter more if you have a lot of EMF noise in your environment. Take a look at my attached photo. You can do almost as good maintaining your twisted pairs using a passthrough connector, but that takes some effort and at that point it's really not much faster or easier than these connectors with their load bars. If you're ok with all the wires within the connector being straight runs (untwisted) then a passthrough is a heck of a lot easier and faster. Quality wise, I had no issues with these. The load bar is a little tight with the conductors in my cable, 23AWG solid, but it's going to depend on your conductors and insulation. I have two different crimp tools and both drove down the contact points until they were nice and flush. Cables have tested out on 1G speeds just fine. If that changes, I will update my review.
