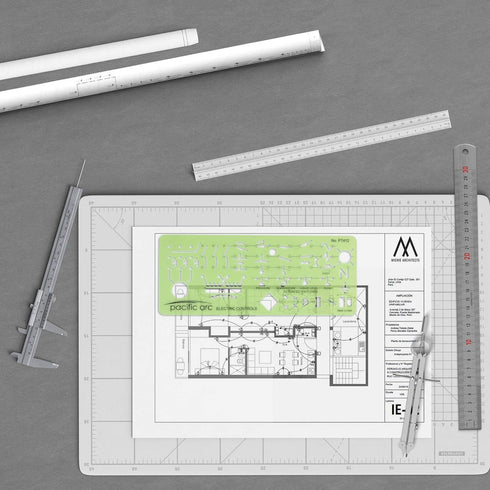

Pacific Arc Electrical Controls Template Guide, Standard Symbols Used in Machinery and Automation Circuits

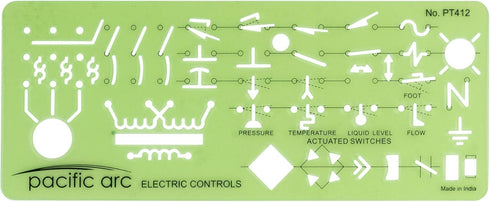

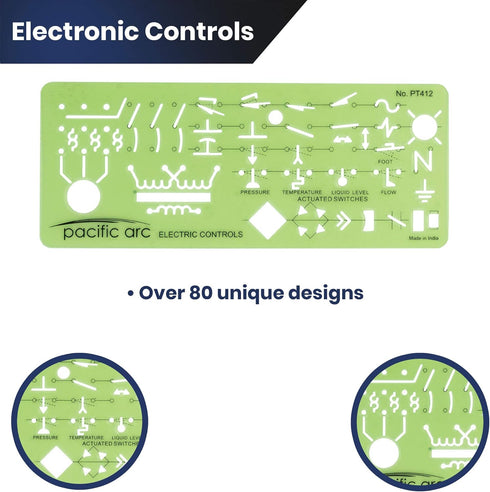

COMPREHENSIVE TEMPLATE - Taking symbols from ANSI Y32.2, this template features all the major electrical symbols for contacts, switches, contactors, and relays. Easily design any diagram or detailed plan without any problems.
COMPACT DESIGN - Measuring 8 Inches by 3.25 Inches, This compact design is perfect for drawing designs on the go. Able to fit in any work bag, never be without this template. Made in correct relative size for photographic reproduction.

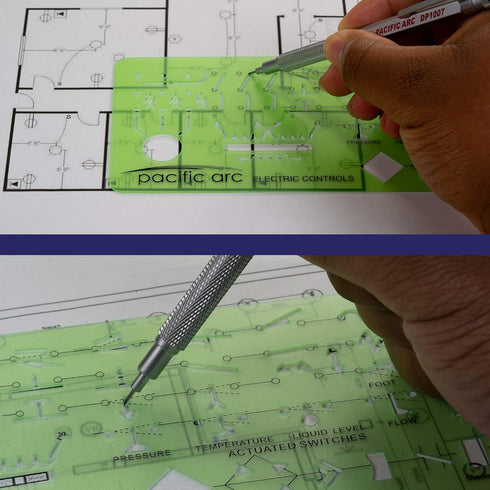

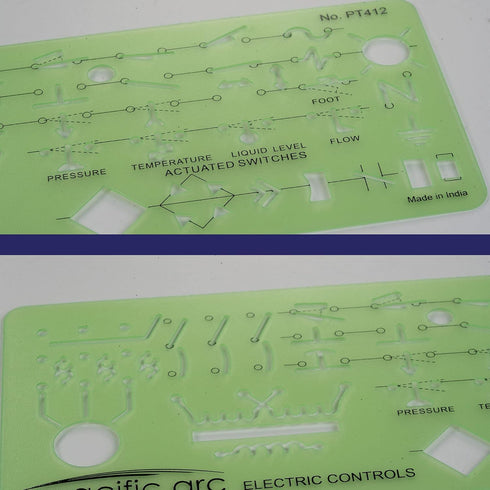

MADE OF HIGH QUALITY PLASTIC - The translucent see through green plastic makes it easy to create your exact shape without drawing in the wrong place. It's convenient size makes it the perfect travel template for any professional or student. works on many surfaces including paper, vellum, fabric, canvas, wood, and mylar.
MONEY-BACK GUARANTEE-If this drawing tool isn't what you're looking for, we offer a money-back guarantee, backed by Amazon.
THE PERFECT GIFT - Gift this shape stencil to the artist in your life. Give them a practical, memorable gift that will further their creativity to the next level.
9.5 x 4 x 0.2 inches
