3Pcs JSN-SR04T Integrated Ultrasonic Distance Measuring Sensor Transducer Module Waterproof...

5 REVIEWS

SKU: L1406728

VENDOR: WWZMDiB

$28.24$23.99

You Save: $4.25 (16%)

Hurry! Only 10 Left in Stock!

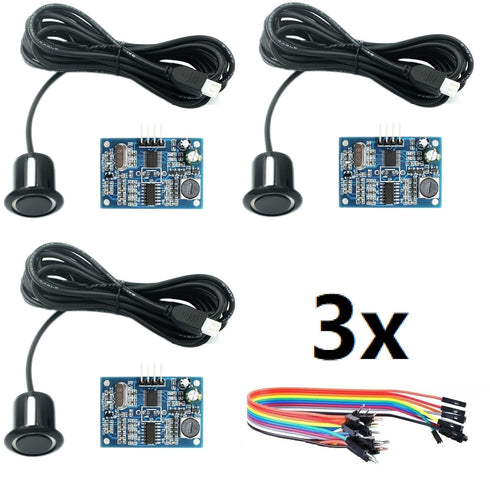

3Pcs JSN-SR04T Integrated Ultrasonic Distance Measuring Sensor Transducer Module Waterproof

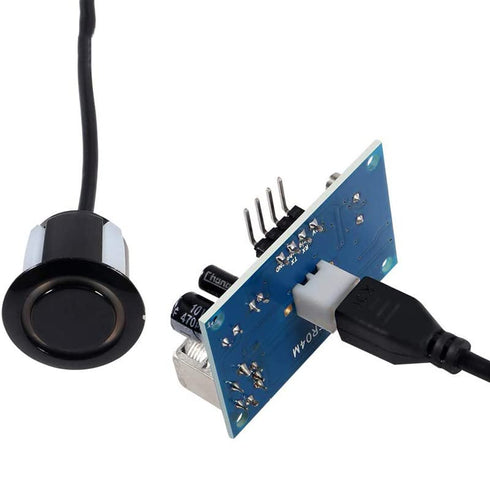

??JSN-SR04T Ultrasonic Distance Measuring Transducer With a waterproof sealed emitter.
??Working Voltage?: DC 3-5.5V
???Measuring range?: 25cm-4M,
???Detecting range?:20cm-600cm?Precision 2mm?Angle75 Degree.
??Applications:It is widely used in horizontal distance ranging, obstacle avoidance, object distance measurement, car reversing sensors, security alarms, automatic control, security and industrial control, Intelligent traffic control and artificial intelligence teaching and research etc.



1.61 x 1.61 x 1.12 inches; 6.74 ounces

  • FREE standard shipping within the United States(3-6 Days)on all orders!
  • 100% money back guarantee for items not delivered or damaged during shipping.
  • Safe and secure checkout with our high quality encryption
  • Shipping services: UPS, FedEx, USPS.
  • Only ship to the lower 48 states, no APO/FPO addresses or PO Boxes allowed.
  • Local pickups and combined shipping options are not provided at this time.


  • You can return a product for up to 30 days from the date you purchased it.
  • Any product you return must be in the same condition you received it and in the original packaging. Please keep the receipt.
  • A full refund if you don’t receive your order
  • A full refund if your order does not arrive within the guaranteed time (6-7 business days not including 1 processing day.)

We accept payment by any of the following methods:
Credit Cards, PayPal, Shop Pay, Apple Pay, Google Pay, Amazon Pay, Meta Pay

Customer satisfaction is very important to us.
If you have any problem with your order, please contact us and we will do our best to make you satisfied.



If you have any queries, please contact us via

Support@ZeeBooth.com

We usually respond within 24 hours on weekdays.


Customer Reviews

Based on 5 reviews
40%
(2)
40%
(2)
0%
(0)
0%
(0)
20%
(1)
O
Olaf Hernndez
The sensors are good

I didn't test them at all yet. But they look good.

A
Ayrton Ronaldo Rojas Calla
VALORACION

Excelente atencion fecha de envio corresponde al lo publicado, recoemndable

J
Jim Wreyford
Arrived on time in good shape. Appears to be as advertised.

Have not used them yet but they look like they should work as advertised.

R
R1
1 usable unit in the package

2 of the boards were DOA, 1 of the sensors failed rapidly. 1 sensor appears to be returning arbitrary values. This particular purchase was a bust. I'd had such good luck with these sensors in the past that I didn't expect a failure at all of the sensor (there isn't much to them). In my application, I cut off the offset mounting ring and trim the rubber insulating grommet, install the sensor in the end of a piece of 3/4" PVC pipe, which then serves as a mount. To lock it in place, I made a ring of hot glue around the sensor edge protruding just slightly from the pipe, then buried it from behind in about a 1/2" of hot glue. I've made about a dozen of these rigs. Some have been running 1 sample per second for over a year with no problem. I may buy again to see if this was a fluke. I have not tried to return since I modified the mounts and have one sensor installed 200 miles from my home. I expect I'd need to return all three together, so just gonna suck it up and figure this was a "1 sensor for the price of 3" kind of deal... :D

J
John H.
Works great with ESPHome with correct settings

Bought this to measure the remaining salt in my water softener. So far working great and seems to be holding up well in the salty environment. When using this unit with ESPHome's utrasonic platform, you have to set the pulse_time value to at least 20us. The default of 10us is too low, and will result in no or erratic values.
